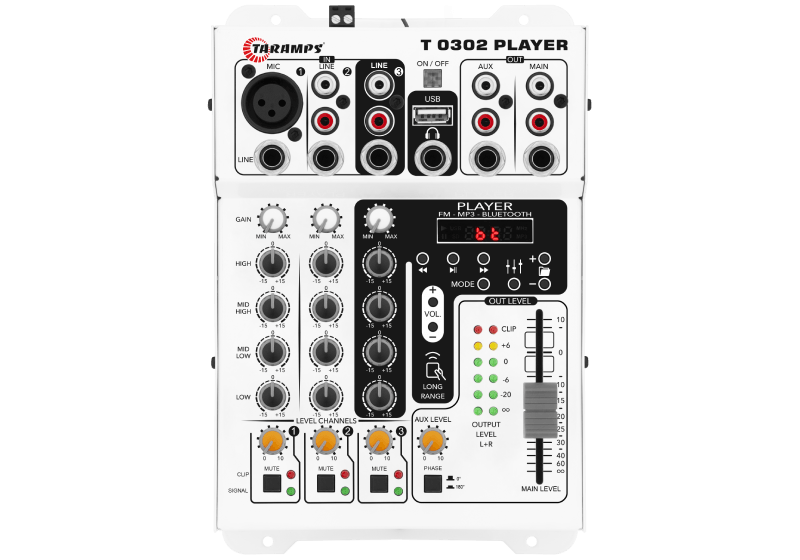

Taramps Mixer T032

Description

Frequency Response 2Hz 76KHz
Total Harmonic Distortion < 0,009% (T.H.D.)
Signal To Noise Ratio 112dB
Frequency Response (-3DB) (PT) 2Hz 76KHz
Total Harmonic Distortion (PT) < 0,009% (T.H.D.)
Signal-to-noise Ratio (SNR) (PT) 112dB
Input Sensitivity Channel 1:
Mic (XLR) Min: 500mV Max 7mV
Line (TRS) Min: 620mV Max 7.6mV

Channels 2 & 3:
Line (TRS/RCA) Min: 2.55V Max: 60mV
4 Equalization Bands Per Channel High 15dB (18KHz)
Mid High 15dB (2.4KHz)
Mid Low 15dB (240Hz)
Low 15dB (30Hz)
Input Impedance Channel 1:
Mic (XRL): Unbalanced 4K Ohms
Balanced 8K Ohms
Line (TRS): Unbalanced 8.5K Ohms
Balanced 17K Ohms

Channels 2 & 3:
Line (TRS): Unbalanced 10K Ohms
Line (RCA): Unbalanced 10K Ohms
Echo FX Time / Echo FX Repeat 50 350ms 1 12 repetitions
Output Impedance Main Out (P10/RCA): 47R
Aux Out (P10/RCA): 47R
Maximum Output Level Main Out (P10/RCA): 18 dBu/6.3Vac
Aux Out (P10/RCA): 18 dBu/6.3Vac
Power Supply Voltage (POWER) 9 16 VDC
Maximum Consumption 470 mA
Remote Input (Rem Connector) 9 16 VDC
Remote Output (Rem Connector) 350 mA
Dimensions (WXHXD) 5.28″ x 1.65″ x 9.66″
Weight 1.80lb
