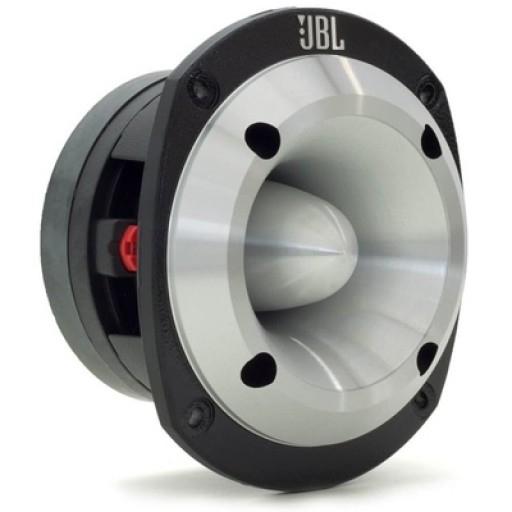

JBL ST400 Trio Tweeter

Description

Power Handling: 150 watts RMS/300 watts max
RMS Power Using Crossover (Active/Passive): NBR 10.303 (HPF 5.000 Hz 12 dB/oit): 100W / NBR 10.303 (HPF 8.000 Hz 12 dB/oit): 150W
Music Program Power Using Crossover (Active/Passive): (HPF 5.000 Hz 12 dB/oit): 200W / (HPF 8.000 Hz 12 dB/oit): 300W
Nominal Impedance: 8 ohms
Voice Coil Diameter: 42mm
Frequency Response: 4,000-20,000 Hz
SPL: 111 dB 2.83V/1m
DC Resistance: 6.2 ohms
Voice Coil Winding Length: 2.2 meters
Voice Coil Winding Depth: 2.0mm
Sound Dispersion (H x V): 40 x 40 degrees
Diaphragm Material: Phenolic
Flux Density: 1.7 T
Volume Displaced by Tweeter: 0.6 I
Magnet Weight: 470g
Net Weight: 1690g
Connectors: Quick Coupling
Front Baffle Cutout Diameter: 106mm
Depth: 87mm
Magnet Diameter: 102mm
Magnet Height: 14mm
