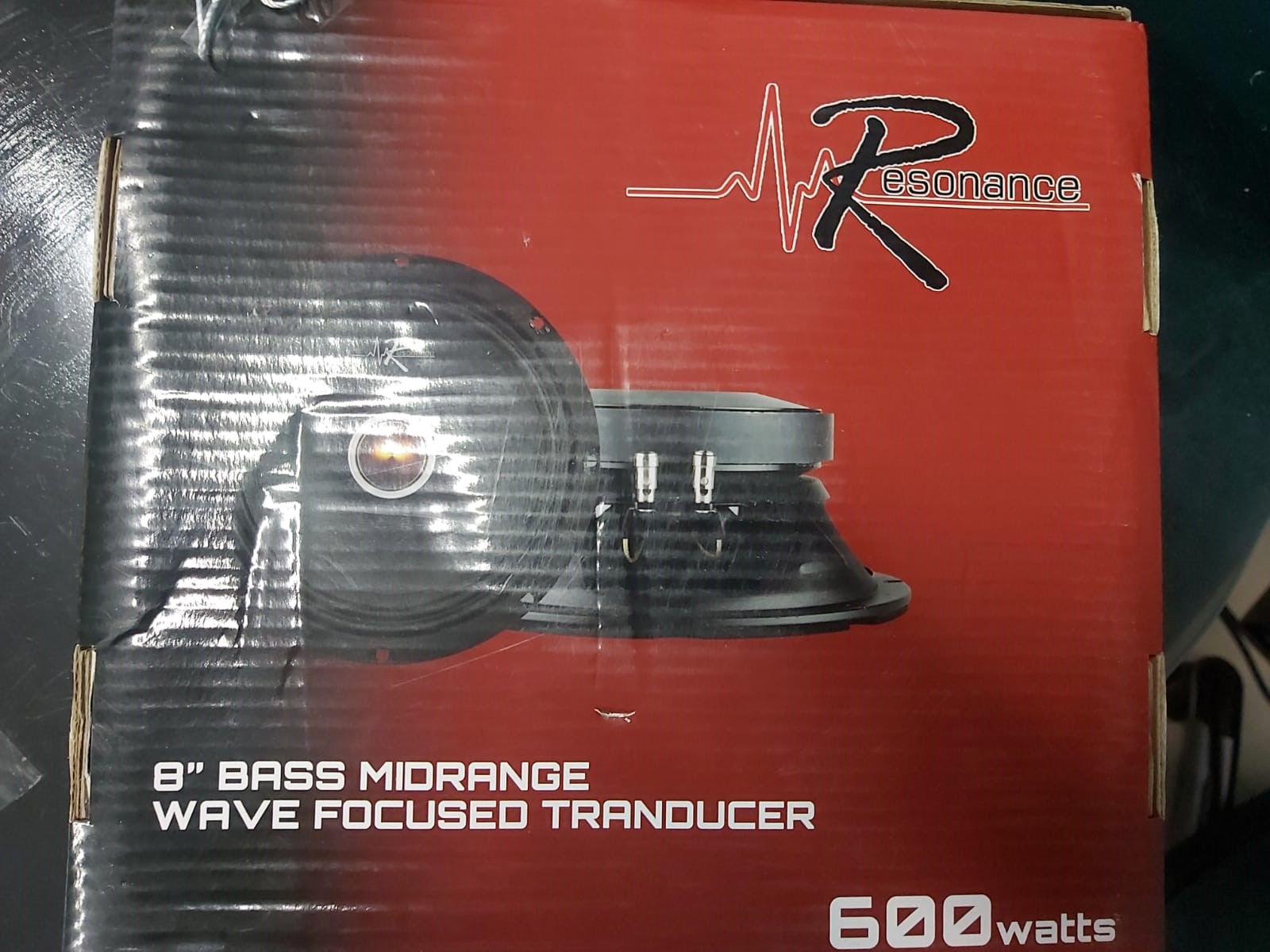

8″ Bass Midrange 600w, Resonance, RE-PC80

X-treme mid range performance is what PRV Audio s 8MR600X-4 is all about. Made to be a class leading mid range in the car audio realm, this driver has a sensitivity of 98 dB and only weighs 7 pounds. This low frequency driver is optimized for custom car audio applications to perform best on very small enclosures, a pro audio version is available at 8ohms 8MR600X

SKU 11149 Categories Audio Equipment, Speaker

Description
Reviews (0)

Description

Nominal / Overall Diameter 8″ (203 mm) / 8.21 (208.5 mm)
Nominal impedance 4 Ohms
Rated AES Power Handling (RMS) 300 Watts
Program Power 600 Watts
Sensitivity 2.83V at 1m 98 dB
Recommended Hi Pass Crossover* 160 Hz** (*For Full Power Handling;**12db Per Octave Crossover)
Frequency Response at -10dB 85 8,500 Hz
Voice Coil Diameter 2.0″ (51 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 14.2 mm
Former Material Polyimide
Magnetic Gap Depth 8.0 mm
Frame Material Die cast aluminum
Front Mount Baffle Cutout 7.29 (185.3 mm)
Mounting Depth 3.75 (95.5 mm)
Overall Depth 4.03 (102.5 mm)
